MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge > Class Template Reference

VertexOutHalfedgeIterator, transverse all the outgoing halfedges of a vertex ccwly. More...

#include <iterators.h>

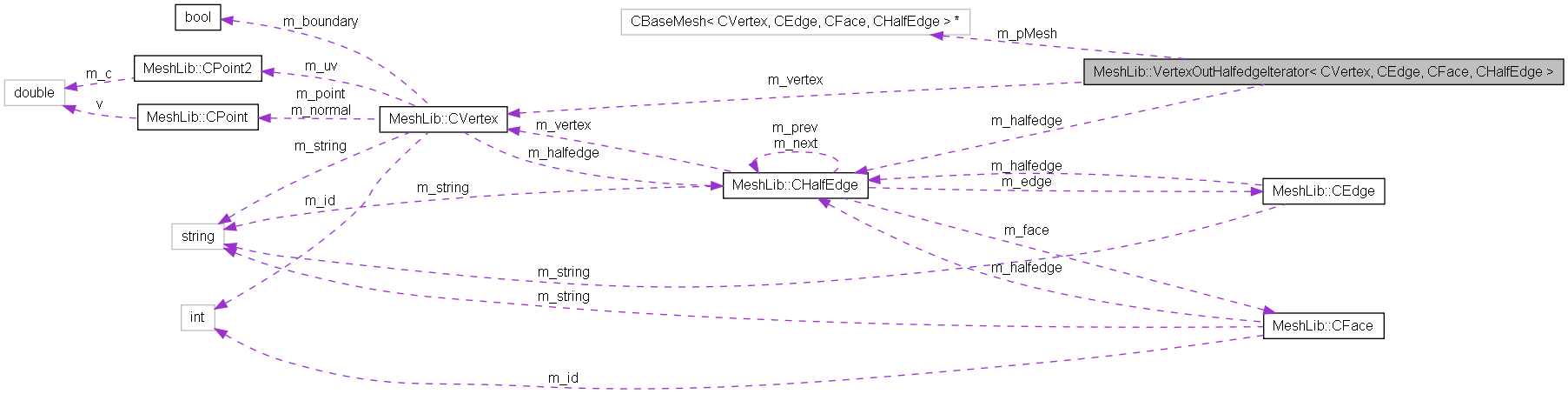

Collaboration diagram for MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >:

List of all members.

Public Member Functions
	VertexOutHalfedgeIterator (CBaseMesh< CVertex, CEdge, CFace, CHalfEdge > *pMesh, CVertex *v)
	~VertexOutHalfedgeIterator ()
void	operator++ ()
void	operator++ (int)
CHalfEdge *	value ()
bool	end ()
CHalfEdge *	operator* ()
Private Attributes
CBaseMesh< CVertex, CEdge, CFace, CHalfEdge > *	m_pMesh
CVertex *	m_vertex
CHalfEdge *	m_halfedge

---

Detailed Description

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
class MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >

VertexOutHalfedgeIterator, transverse all the outgoing halfedges of a vertex ccwly.

Definition at line 22 of file iterators.h.

---

Constructor & Destructor Documentation

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::VertexOutHalfedgeIterator	(	CBaseMesh< CVertex, CEdge, CFace, CHalfEdge > *	pMesh,
		CVertex *	v
	)			[inline]

VertexOutHalfedgeIteartor constructor

Parameters:

	pMesh	pointer to the current mesh
	v	pointer to the current vertex

Definition at line 30 of file iterators.h.

        { m_pMesh = pMesh; m_vertex = v; m_halfedge = m_pMesh->vertexMostClwOutHalfEdge(v); };

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::~VertexOutHalfedgeIterator

(

)

[inline]

VertexOutHalfedgeIterator destructor

Definition at line 36 of file iterators.h.

{};

---

Member Function Documentation

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

bool MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::end

(

)

[inline]

whether all the out halfedges have been visited.

Definition at line 65 of file iterators.h.

{ return m_halfedge == NULL; };

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CHalfEdge* MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::operator*

(

)

[inline]

The current halfedge the iterator pointing to.

Definition at line 69 of file iterators.h.

{ return value(); };

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

void MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::operator++

(

int

)

[inline]

postfix ++ operator, goes to the next ccw vertex out halfedge

Definition at line 50 of file iterators.h.

        {assert( m_halfedge != NULL );
         if( m_halfedge == m_pMesh->vertexMostCcwOutHalfEdge(m_vertex) )
                 m_halfedge = NULL;
         else
                 m_halfedge = m_pMesh->vertexNextCcwOutHalfEdge(m_halfedge); };

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

void MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::operator++

(

)

[inline]

prefix ++ operator, goes to the next ccw vertex out halfedge

Definition at line 40 of file iterators.h.

        {assert( m_halfedge != NULL );
         if( m_halfedge == m_pMesh->vertexMostCcwOutHalfEdge(m_vertex) )
                 m_halfedge = NULL;
         else
                 m_halfedge = m_pMesh->vertexNextCcwOutHalfEdge(m_halfedge); };

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CHalfEdge* MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::value

(

)

[inline]

The current halfedge the iterator pointing to.

Definition at line 61 of file iterators.h.

{ return m_halfedge; };

Here is the caller graph for this function:

---

Member Data Documentation

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CHalfEdge* MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::m_halfedge [private]

Current halfedge.

Definition at line 83 of file iterators.h.

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CBaseMesh<CVertex,CEdge,CFace,CHalfEdge>* MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::m_pMesh [private]

Current mesh.

Definition at line 69 of file iterators.h.

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CVertex* MeshLib::VertexOutHalfedgeIterator< CVertex, CEdge, CFace, CHalfEdge >::m_vertex [private]

Current vertex.

Definition at line 79 of file iterators.h.

---

The documentation for this class was generated from the following file:

• core/Mesh/iterators.h
