MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge > Class Template Reference

CBaseMesh, base class for all types of mesh classes. More...

#include <BaseMesh.h>

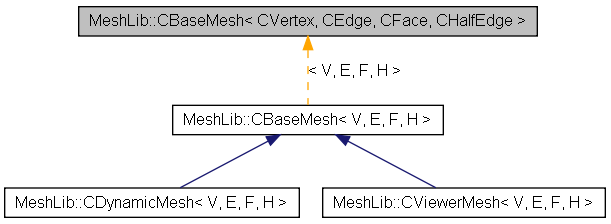

Inheritance diagram for MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >:
Inheritance graph
[legend]
Collaboration diagram for MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >:

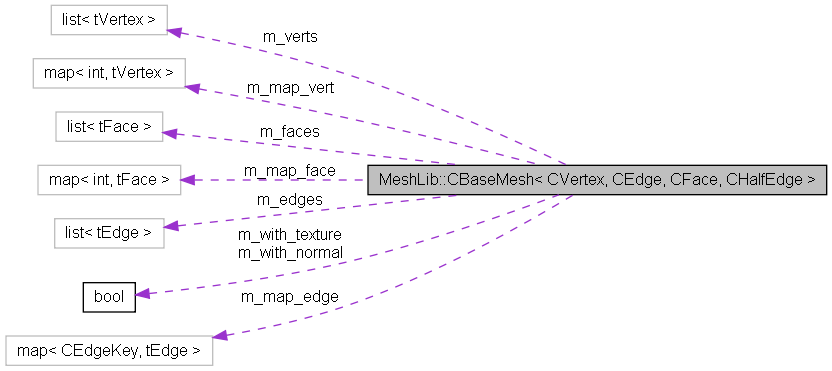

Collaboration graph
[legend]

List of all members.

Public Types

typedef CVertextVertex
typedef CHalfEdgetHalfEdge
typedef CEdgetEdge
typedef CFacetFace

Public Member Functions

 CBaseMesh ()
 ~CBaseMesh ()
void copy (CBaseMesh &mesh)
void read_obj (const char *filename)
void write_obj (const char *output)
void read_m (const char *input)
void write_m (const char *output)
void read_off (const char *input)
int numVertices ()
int numEdges ()
int numFaces ()
bool isBoundary (tVertex v)
bool isBoundary (tEdge e)
bool isBoundary (tHalfEdge he)
tVertex idVertex (int id)
int vertexId (tVertex v)
tFace idFace (int id)
int faceId (tFace f)
tEdge vertexEdge (tVertex v0, tVertex v1)
tHalfEdge vertexHalfedge (tVertex v0, tVertex v1)
tHalfEdge corner (tVertex v, tFace f)
tFace halfedgeFace (tHalfEdge he)
tVertex halfedgeVertex (tHalfEdge he)
tVertex halfedgeTarget (tHalfEdge he)
tVertex halfedgeSource (tHalfEdge he)
tHalfEdge halfedgeNext (tHalfEdge he)
tHalfEdge halfedgePrev (tHalfEdge he)
tHalfEdge halfedgeSym (tHalfEdge he)
tEdge halfedgeEdge (tHalfEdge he)
tHalfEdge vertexHalfedge (tVertex v)
tVertex edgeVertex1 (tEdge e)
tVertex edgeVertex2 (tEdge e)
tFace edgeFace1 (tEdge e)
tFace edgeFace2 (tEdge e)
tHalfEdge edgeHalfedge (tEdge e, int id)
tHalfEdge faceHalfedge (tFace f)
tHalfEdge vertexMostClwOutHalfEdge (tVertex v)
tHalfEdge vertexNextCcwOutHalfEdge (tHalfEdge he)
tHalfEdge vertexMostCcwOutHalfEdge (tVertex v)
tHalfEdge vertexNextClwOutHalfEdge (tHalfEdge he)
tHalfEdge vertexMostClwInHalfEdge (tVertex v)
tHalfEdge vertexNextCcwInHalfEdge (tHalfEdge he)
tHalfEdge vertexMostCcwInHalfEdge (tVertex v)
tHalfEdge vertexNextClwInHalfEdge (tHalfEdge he)
tHalfEdge faceMostClwHalfEdge (tFace face)
tHalfEdge faceMostCcwHalfEdge (tFace face)
tHalfEdge faceNextCcwHalfEdge (tHalfEdge he)
tHalfEdge faceNextClwHalfEdge (tHalfEdge he)
double edgeLength (tEdge e)
std::list< tEdge > & edges ()
std::list< tFace > & faces ()
std::list< tVertex > & vertices ()
tVertex createVertex (int id=0)
tEdge createEdge (tVertex v1, tVertex v2)
tFace createFace (tVertex v[], int id)
void deleteFace (tFace pFace)

Public Attributes

bool m_with_texture
bool m_with_normal

Protected Attributes

std::list< tEdgem_edges
std::list< tVertexm_verts
std::list< tFacem_faces
std::map< int, tVertexm_map_vert
std::map< int, tFacem_map_face
std::map< CEdgeKey, tEdgem_map_edge

Detailed Description

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
class MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >

CBaseMesh, base class for all types of mesh classes.

This is the fundamental class for meshes. It includes a list of vertices, a list of edges, a list of faces. All the geometric objects are connected by pointers, vertex, edge, face are connected by halfedges. The mesh class has file IO functionalities, supporting .obj, .m and .off file formats. It offers Euler operators, each geometric primative can access its neighbors freely.

Template Parameters:
CVertex vertex class, derived from MeshLib::CVertex class
CEdge edge class, derived from MeshLib::CEdge class
CFace face class, derived from MeshLib::CFace class
CHalfEdge halfedge class, derived from MeshLib::CHalfEdge class

Definition at line 44 of file BaseMesh.h.


Member Typedef Documentation

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
typedef CEdge* MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::tEdge

Definition at line 32 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
typedef CFace* MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::tFace

Definition at line 33 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
typedef CHalfEdge* MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::tHalfEdge

Definition at line 31 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
typedef CVertex* MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::tVertex

Definition at line 30 of file BaseMesh.h.


Constructor & Destructor Documentation

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::CBaseMesh (  )  [inline]

CBaseMesh constructor.

Definition at line 39 of file BaseMesh.h.

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::~CBaseMesh (  )

CBasemesh destructor

CBaseMesh destructor

Definition at line 822 of file BaseMesh.h.

{
        //remove vertices

  for( std::list<CVertex*>::iterator viter = m_verts.begin(); viter != m_verts.end(); viter ++ )
  {
      CVertex * pV = *viter;
      delete pV;
  }
  m_verts.clear();

        //remove faces

  for( std::list<CFace*>::iterator fiter = m_faces.begin(); fiter != m_faces.end(); fiter ++ )
  {
      CFace * pF = *fiter;

      tHalfEdge he = faceHalfedge( pF );

      std::list<CHalfEdge*> hes;
      do{
        he = halfedgeNext( he );
        hes.push_back( he );
      }while( he != pF->halfedge() );

      for( std::list<CHalfEdge*>::iterator hiter = hes.begin(); hiter != hes.end(); hiter ++)
      {
          CHalfEdge * pH = *hiter;
          delete pH;
      }
      hes.clear();

      delete pF;
  }
  m_faces.clear();

  //remove edges
  for( std::list<CEdge*>::iterator eiter = m_edges.begin(); eiter != m_edges.end(); eiter ++ )
  {
      CEdge * pE = *eiter;
      delete pE;
  }

  m_edges.clear();

  //clear all the maps
  m_map_vert.clear();
  m_map_face.clear();
  m_map_edge.clear();

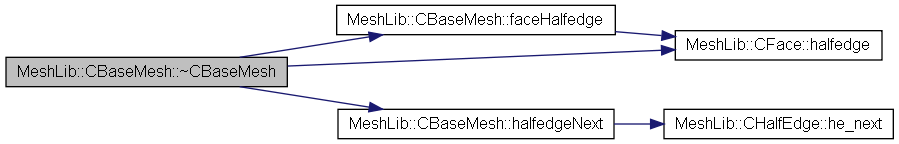

Here is the call graph for this function:


Member Function Documentation

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
void MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::copy ( CBaseMesh< CVertex, CEdge, CFace, CHalfEdge > &  mesh  )

Copy operator

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::corner ( tVertex  v,
tFace  f
)

Access a halfedge by its target vertex, and attaching face.

Parameters:
v target vertex
f attaching face
Returns:
halfedge, whose target is v, attaching face is f. NULL if no such an halfedge exists.

Definition at line 702 of file BaseMesh.h.

{
        CHalfEdge * he = faceMostCcwHalfEdge( f );
        do{
                if( he->vertex() == v )
                        return (CHalfEdge*) he;
                he = faceNextCcwHalfEdge( he );
        }while( he != faceMostCcwHalfEdge(f) );
        return NULL;

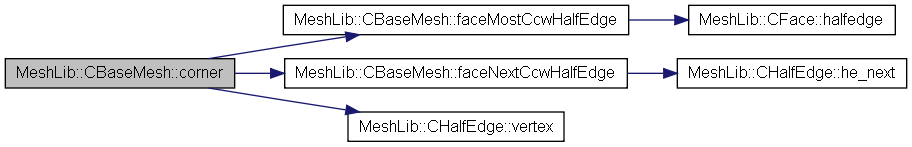

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::createEdge ( tVertex  v1,
tVertex  v2
)

Create an edge

Parameters:
v1 end vertex of the edge
v2 end vertex of the edge
Returns:
pointer to the new edge

Definition at line 1204 of file BaseMesh.h.

{
        CEdgeKey key(v1->id(),v2->id());

        CEdge * e = NULL;

        if( m_map_edge.find( key ) != m_map_edge.end() )
        {
                e = m_map_edge[key];
                assert( e!= NULL );
                return e;
        }

        e = new CEdge;
        assert( e != NULL );

        assert( e != NULL );
        m_map_edge.insert( std::pair<CEdgeKey,CEdge *>(key,e) );
        m_edges.push_back( e );
        return e;

Here is the call graph for this function:

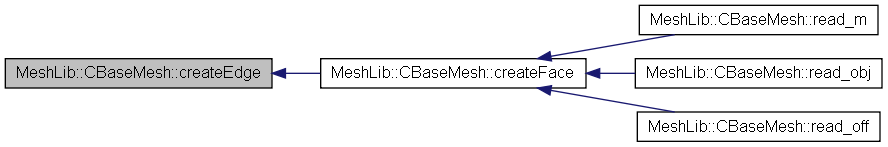

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CFace * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::createFace ( tVertex  v[],
int  id
)

Create a face

Parameters:
v an array of vertices
id face id
Returns:
pointer to the new face

Definition at line 1096 of file BaseMesh.h.

{
          CFace * f = new CFace();
          assert( f != NULL );
          f->id() = id;
          m_faces.push_back( f );
          m_map_face.insert( std::pair<int,tFace>(id,f) );

                //create halfedges
                tHalfEdge hes[3];

                for(int i = 0; i < 3; i ++ )
                {
                        hes[i] = new CHalfEdge;
                        assert( hes[i] );
                        CVertex * vert =  v[i];
                        hes[i]->vertex() = vert;
                        vert->halfedge() = hes[i];
                }

                //linking to each other
                for(int i = 0; i < 3; i ++ )
                {
                        hes[i]->he_next() = hes[(i+1)%3];
                        hes[i]->he_prev() = hes[(i+2)%3];
                }

                //linking to face
                for(int i = 0; i < 3; i ++ )
                {
                        hes[i]->face()   = f;
                        f->halfedge()    = hes[i];
                }

                //connecting with edge
                for(int i = 0; i < 3; i ++ )
                {
                        tEdge e = createEdge( v[i], v[(i+2)%3] );
                        if( e->halfedge(0)  == NULL )
                        {
                                e->halfedge(0) = hes[i];
                        }
                        else
                        {
                                assert( e->halfedge(1) == NULL );
                                e->halfedge(1) = hes[i];
                        }
                        hes[i]->edge() = e;
                }

                return f;

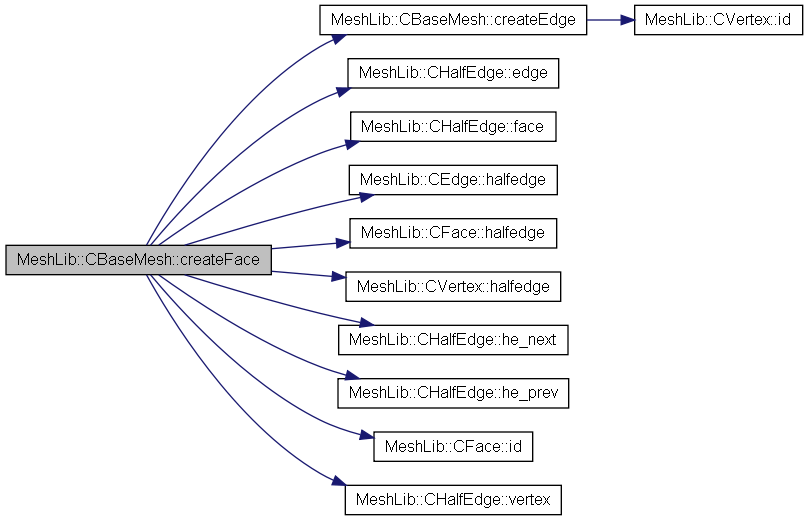

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CVertex * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::createVertex ( int  id = 0  )

Create a vertex

Parameters:
id Vertex id
Returns:
pointer to the new vertex

Definition at line 893 of file BaseMesh.h.

{
        CVertex * v = new CVertex();
        assert( v != NULL );
        v->id() = id;
        m_verts.push_back( v );
        m_map_vert.insert( std::pair<int,CVertex*>(id,v));
        return v;

Here is the call graph for this function:

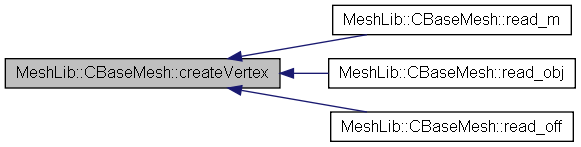

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
void MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::deleteFace ( tFace  pFace  )

delete one face

Parameters:
pFace the face to be deleted

Definition at line 1725 of file BaseMesh.h.

{
          std::map<int,tFace>::iterator fiter = m_map_face.find( pFace->id() );
          if( fiter != m_map_face.end() )
          {
                  m_map_face.erase( fiter );
          }
          m_faces.remove( pFace );


         //create halfedges
         tHalfEdge hes[3];

         hes[0] = faceHalfedge( pFace );
         hes[1] = faceNextCcwHalfEdge( hes[0] );
         hes[2] = faceNextCcwHalfEdge( hes[1] );

         for(int i = 0; i < 3; i ++ )
         {
                //connection with edge
                CHalfEdge * pH = hes[i];

                //connection to target
                CVertex * pV = halfedgeTarget( pH );
                if( pV->halfedge() == pH )
                {
                        if( pH->he_next()->he_sym() != NULL )
                                pV->halfedge() = pH->he_next()->he_sym();
                        else
                        {
                                assert( pH->he_sym() != NULL ); //otherwise the mesh is not a manifold
                                pV->halfedge() = pH->he_sym()->he_prev();
                        }
                }
         }

                for(int i = 0; i < 3; i ++ )
                {
                        //connection with edge
                        CHalfEdge * pH = hes[i];
                        CHalfEdge * pS = halfedgeSym( pH );
                        CEdge * pE = halfedgeEdge( pH );

                        pE->halfedge(0) = pS;
                        pE->halfedge(1) = NULL;

                        if( pS == NULL )
                        {
                                //assert(0);
                                m_edges.remove( pE );
                                CVertex * v0 = halfedgeSource( pH );
                                CVertex * v1 = halfedgeTarget( pH );
                                CEdgeKey key(v0->id(),v1->id());
                                std::map<CEdgeKey,tEdge>::iterator eiter = m_map_edge.find(key);
                                if( eiter != m_map_edge.end() )
                                        m_map_edge.erase( eiter );
                                delete pE;
                        }


                }

                //remove half edges
                for(int i = 0; i < 3; i ++ )
                {
                        delete hes[i];
                }

                delete pFace;

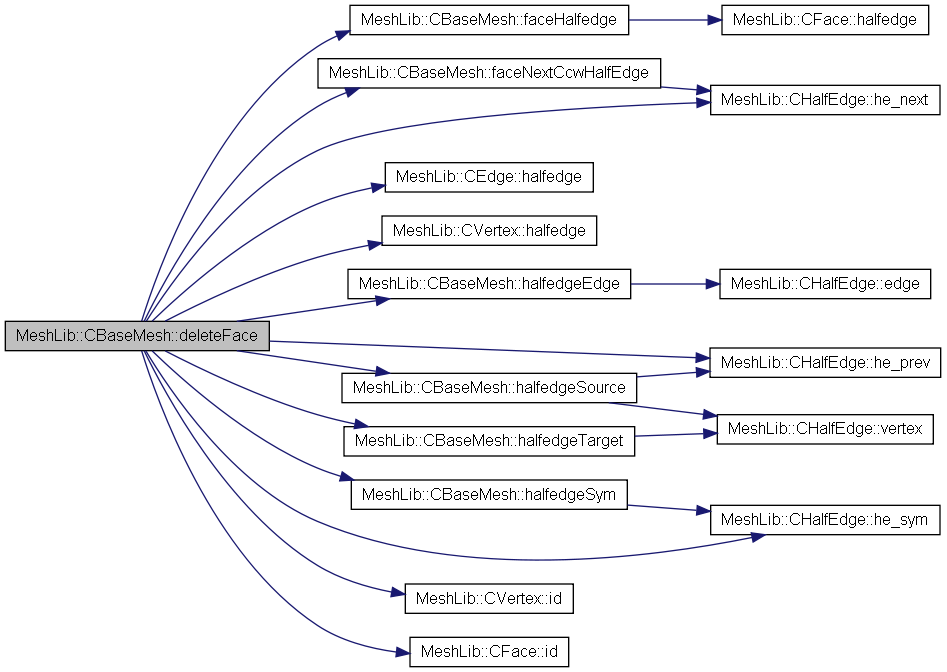

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CFace * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::edgeFace1 ( tEdge  e  )

The first face attaching to an edge.

Parameters:
e the input edge.
Returns:
the first face attaching to e.

Definition at line 476 of file BaseMesh.h.

{
        assert( e->halfedge(0) != NULL );
        return (CFace*) e->halfedge(0)->face();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CFace * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::edgeFace2 ( tEdge  e  )

The second face attaching to an edge.

Parameters:
e the input edge.
Returns:
the second face attaching to e.

The second face attaching to an edge.

Parameters:
e the input edge.
Returns:
the first face attaching to e.

Definition at line 504 of file BaseMesh.h.

{
        assert( e->halfedge(1) != NULL );
        return (CFace*) e->halfedge(1)->face();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::edgeHalfedge ( tEdge  e,
int  id
)

The halfedge attaching to an edge.

Parameters:
e the input edge.
id the index of the halfedge, either 0 or 1
Returns:
the halfedge[i] attaching to edge e.

Definition at line 491 of file BaseMesh.h.

{
        return (CHalfEdge*)e->halfedge(id);

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
double MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::edgeLength ( tEdge  e  )

Edge length

Parameters:
e the input edge
Returns:
the length of the edge e

Edge length

Definition at line 877 of file BaseMesh.h.

{
        CVertex * v1 = edgeVertex1(e);
        CVertex * v2 = edgeVertex2(e);

        return ( v1->point() - v2->point() ).norm();

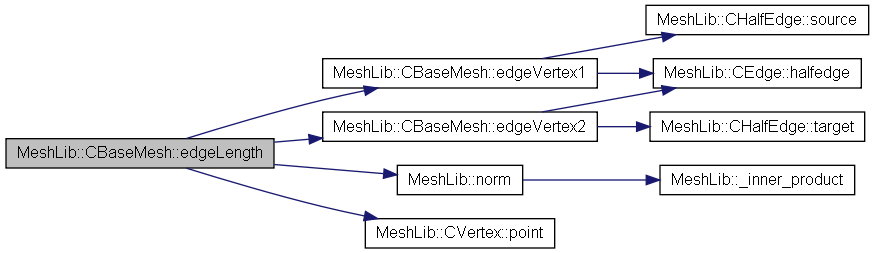

Here is the call graph for this function:

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::list<tEdge>& MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::edges (  )  [inline]

List of the edges of the mesh.

Definition at line 361 of file BaseMesh.h.

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CVertex * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::edgeVertex1 ( tEdge  e  )

The first vertex of an edge.

Parameters:
e the input edge.
Returns:
the first vertex of e.

Definition at line 450 of file BaseMesh.h.

{
        assert( e->halfedge(0 ) != NULL );
        return (CVertex*)e->halfedge(0)->source();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CVertex * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::edgeVertex2 ( tEdge  e  )

The second vertex of an edge.

Parameters:
e the input edge.
Returns:
the second vertex of e.

The second vertex of an edge.

Parameters:
e the input edge.
Returns:
the first vertex of e.

Definition at line 463 of file BaseMesh.h.

{
        assert( e->halfedge(0 ) != NULL );
        return (CVertex*)e->halfedge(0)->target();

Here is the call graph for this function:

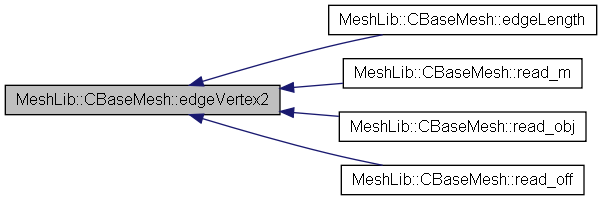

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::faceHalfedge ( tFace  f  )

The first halfedge attaching to a face f.

Parameters:
f the input face.
Returns:
the first halfedge attaching to f.

Definition at line 530 of file BaseMesh.h.

{
        return (CHalfEdge*)f->halfedge();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
int MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::faceId ( tFace  f  )

The face id

Parameters:
f the input face
Returns:
the face id.

Definition at line 1193 of file BaseMesh.h.

{
        return f->id();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::faceMostCcwHalfEdge ( tFace  face  )

The most Ccw HalfEdge of a face

Parameters:
face the input face.
Returns:
the most Ccw HalfEdge of f.

Definition at line 805 of file BaseMesh.h.

{
        return (CHalfEdge*)face->halfedge();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::faceMostClwHalfEdge ( tFace  face  )

The most Clw HalfEdge of a face

Parameters:
face the input face.
Returns:
the most Clw HalfEdge of f.

The most Clw HalfEdge in a face

Parameters:
face the input face.
Returns:
the most Clw HalfEdge in a face.

Definition at line 814 of file BaseMesh.h.

{
        return (CHalfEdge*)face->halfedge()->he_next();

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::faceNextCcwHalfEdge ( tHalfEdge  he  )

The next Ccw HalfEdge of a halfedge in a face

Parameters:
he the input halfedge.
Returns:
the next Ccw HalfEdge of he in a face.

Definition at line 794 of file BaseMesh.h.

{
        return (CHalfEdge*)he->he_next();

Here is the call graph for this function:

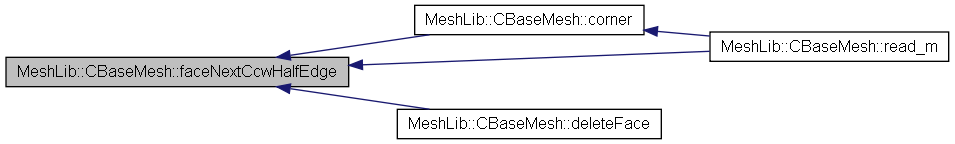

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::faceNextClwHalfEdge ( tHalfEdge  he  )

The next Clw HalfEdge of a halfedge in a face

Parameters:
he the input halfedge.
Returns:
the next Clw HalfEdge of he in a face.

Definition at line 784 of file BaseMesh.h.

{
        return (CHalfEdge*)he->he_prev();

Here is the call graph for this function:

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::list<tFace>& MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::faces (  )  [inline]

List of the faces of the mesh.

Definition at line 365 of file BaseMesh.h.

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgeEdge ( tHalfEdge  he  )

The edge of a halfedge.

Parameters:
he the input halfedge.
Returns:
the edge of he.

Definition at line 580 of file BaseMesh.h.

{
        return (CEdge*)he->edge();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CFace * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgeFace ( tHalfEdge  he  )

The face a halfedge attaching to.

Parameters:
he the input halfedge
Returns:
the face he attaches

Definition at line 517 of file BaseMesh.h.

{
        return (CFace*)he->face();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgeNext ( tHalfEdge  he  )

The next halfedge of a halfedge.

Parameters:
he the input halfedge.
Returns:
the next halfedge of he.

Definition at line 544 of file BaseMesh.h.

{
        return (CHalfEdge*)he->he_next();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgePrev ( tHalfEdge  he  )

The previous halfedge of a halfedge.

Parameters:
he the input halfedge.
Returns:
the next halfedge of he.

Definition at line 556 of file BaseMesh.h.

{
        return (CHalfEdge*)he->he_prev();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CVertex * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgeSource ( tHalfEdge  he  )

The source vertex of a halfedge.

Parameters:
he the input halfedge.
Returns:
the source vertex of he.

Definition at line 616 of file BaseMesh.h.

{
        return (CVertex*)he->he_prev()->vertex();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgeSym ( tHalfEdge  he  )

The dual halfedge of a halfedge.

Parameters:
he the input halfedge.
Returns:
the dual halfedge of he.

Definition at line 568 of file BaseMesh.h.

{
        return (CHalfEdge*)he->he_sym();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CVertex * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgeTarget ( tHalfEdge  he  )

The target vertex of a halfedge.

Parameters:
he the input halfedge.
Returns:
the target vertex of he.

Definition at line 604 of file BaseMesh.h.

{
        return (CVertex*)he->vertex();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CVertex * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::halfedgeVertex ( tHalfEdge  he  )

The target vertex of a halfedge.

Parameters:
he the input halfedge.
Returns:
the target vertex of he.

Definition at line 592 of file BaseMesh.h.

{
        return (CVertex*)he->vertex();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CFace * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::idFace ( int  id  )

Access a face by its id

Parameters:
id the face id
Returns:
the face, whose ID equals to id. NULL, if there is no such a face.

Definition at line 1181 of file BaseMesh.h.

{
        return m_map_face[id];

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CVertex * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::idVertex ( int  id  )

Access a vertex by its id

Parameters:
id the vertex id
Returns:
the vertex, whose ID equals to id. NULL, if there is no such a vertex.

Definition at line 1157 of file BaseMesh.h.

{
        return m_map_vert[id];

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
bool MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::isBoundary ( tVertex  v  )

whether a vertex is on the boundary

Parameters:
v the pointer to the vertex

Definition at line 624 of file BaseMesh.h.

{
        return v->boundary();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
bool MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::isBoundary ( tEdge  e  )

whether an edge is on the boundary

Parameters:
e the pointer to the edge

Definition at line 632 of file BaseMesh.h.

{
        if( e->halfedge(0) == NULL || e->halfedge(1) == NULL ) return true;
        return false;

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
bool MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::isBoundary ( tHalfEdge  he  )

whether a halfedge is on the boundary

Parameters:
he the pointer to the halfedge

Definition at line 641 of file BaseMesh.h.

{
        if( he->he_sym() == NULL ) return true;
        return false;

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
int MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::numEdges (  )

number of edges

Number of edges of the mesh

Definition at line 658 of file BaseMesh.h.

{
        return (int) m_edges.size();

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
int MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::numFaces (  )

number of faces

Number of faces of the mesh

Definition at line 667 of file BaseMesh.h.

{
        return (int) m_faces.size();

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
int MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::numVertices (  )

number of vertices

Number of vertices of the mesh

Definition at line 650 of file BaseMesh.h.

{
        return (int) m_verts.size();

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
void MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::read_m ( const char *  input  )

Read an .m file.

Parameters:
input the input obj file name

Definition at line 1280 of file BaseMesh.h.

{
        std::fstream is( input, std::fstream::in );

        if( is.fail() )
        {
                fprintf(stderr,"Error in opening file %s\n", input );
                return;
        }

        char buffer[MAX_LINE];
        int id;

        while( is.getline(buffer, MAX_LINE )  )
        {

                std::string line( buffer );
                line = strutil::trim( line );

                strutil::Tokenizer stokenizer( line, " \r\n" );

                stokenizer.nextToken();
                std::string token = stokenizer.getToken();

                if( token == "Vertex"  )
                {
                        stokenizer.nextToken();
                        token = stokenizer.getToken();
                        id = strutil::parseString<int>(token);

                        CPoint p;
                        for( int i = 0 ; i < 3; i ++ )
                        {
                                stokenizer.nextToken();
                                token = stokenizer.getToken();
                                p[i] = strutil::parseString<float>(token);
                        }

                        tVertex v  = createVertex( id );
                        v->point() = p;
                        v->id()    = id;

                        if( ! stokenizer.nextToken("\t\r\n") ) continue;
                        token = stokenizer.getToken();

                        int sp = (int) token.find("{");
                        int ep = (int) token.find("}");

                        if( sp >= 0 && ep >= 0 )
                        {
                                v->string() = token.substr( sp+1, ep-sp-1 );
                        }
                        continue;
                }


                if( token == "Face" )
                {

                        stokenizer.nextToken();
                        token = stokenizer.getToken();
                        id = strutil::parseString<int>(token);

                        CVertex * v[3];
                        for( int i = 0; i < 3; i ++ )
                        {
                                stokenizer.nextToken();
                                token = stokenizer.getToken();
                                int vid = strutil::parseString<int>(token);
                                v[i] = idVertex( vid );
                        }

                        tFace f = createFace( v, id );

                        if( !stokenizer.nextToken() ) continue;
                        token = stokenizer.getToken();

                        int sp = (int) token.find("{");
                        int ep = (int) token.find("}");

                        if( sp >= 0 && ep >= 0 )
                        {
                                f->string() = token.substr( sp+1, ep-sp-1 );
                        }
                        continue;
                }

                //read in edge attributes
                if( token == "Edge" )
                {
                        stokenizer.nextToken();
                        token = stokenizer.getToken();
                        int id0 = strutil::parseString<int>( token );

                        stokenizer.nextToken();
                        token = stokenizer.getToken();
                        int id1 = strutil::parseString<int>( token );


                        CVertex * v0 = idVertex( id0 );
                        CVertex * v1 = idVertex( id1 );

                        tEdge edge = vertexEdge( v0, v1 );

                        if( !stokenizer.nextToken("\t\r\n") ) continue;
                        token = stokenizer.getToken();

                        int sp = (int) token.find("{");
                        int ep = (int) token.find("}");

                        if( sp >= 0 && ep >= 0 )
                        {
                                  edge->string() = token.substr( sp+1, ep-sp-1 );
                        }
                        continue;
                }

                //read in edge attributes
                if( token == "Corner" )
                {
                        stokenizer.nextToken();
                        token = stokenizer.getToken();
                        int vid = strutil::parseString<int>( token );

                        stokenizer.nextToken();
                        token = stokenizer.getToken();
                        int fid = strutil::parseString<int>( token );


                        CVertex * v = idVertex( vid );
                        CFace   * f = idFace( fid );
                        tHalfEdge he = corner( v, f );


                        if( !stokenizer.nextToken("\t\r\n") ) continue;
                        token = stokenizer.getToken();

                        int sp = (int) token.find("{");
                        int ep = (int) token.find("}");

                        if( sp >= 0 && ep >= 0 )
                        {
                                he->string() = token.substr( sp+1, ep-sp-1 );
                        }
                        continue;
                }
        }

        //Label boundary edges
        for(std::list<CEdge*>::iterator eiter= m_edges.begin() ; eiter != m_edges.end() ; ++ eiter )
        {
                CEdge *     edge = *eiter;
                CHalfEdge * he[2];

                he[0] = edgeHalfedge( edge, 0 );
                he[1] = edgeHalfedge( edge, 1 );

                assert( he[0] != NULL );


                if( he[1] != NULL )
                {
                        assert( he[0]->target() == he[1]->source() && he[0]->source() == he[1]->target() );

                        if( he[0]->target()->id() < he[0]->source()->id() )
                        {
                                edge->halfedge(0 ) = he[1];
                                edge->halfedge(1 ) = he[0];
                        }

                        assert( edgeVertex1(edge)->id() < edgeVertex2(edge)->id() );
                }
                else
                {
                        he[0]->vertex()->boundary() = true;
                        he[0]->he_prev()->vertex()->boundary()  = true;
                }

        }

        std::list<CVertex*> dangling_verts;
        //Label boundary edges
        for(std::list<CVertex*>::iterator viter = m_verts.begin();  viter != m_verts.end() ; ++ viter )
        {
                CVertex *     v = *viter;
                if( v->halfedge() != NULL ) continue;
                dangling_verts.push_back( v );
        }

        for( std::list<CVertex*>::iterator  viter = dangling_verts.begin() ; viter != dangling_verts.end(); ++ viter )
        {
                CVertex * v = *viter;
                m_verts.remove( v );
                delete v;
                v = NULL;
        }

        //Arrange the boundary half_edge of boundary vertices, to make its halfedge
        //to be the most ccw in half_edge

        for(std::list<CVertex*>::iterator viter = m_verts.begin();  viter != m_verts.end() ; ++ viter )
        {
                CVertex *     v = *viter;
                if( !v->boundary() ) continue;

                CHalfEdge * he = vertexMostCcwInHalfEdge( v );
                while( he->he_sym() != NULL )
                {
                        he =  vertexNextCcwInHalfEdge ( he );
                }
                v->halfedge() = he;
        }

        //read in the traits

        for(std::list<CVertex*>::iterator viter = m_verts.begin();  viter != m_verts.end() ; ++ viter )
        {
                CVertex *     v = *viter;
                v->_from_string();
        }

        for(std::list<CEdge*>::iterator eiter = m_edges.begin();  eiter != m_edges.end() ; ++ eiter )
        {
                CEdge *     e = *eiter;
                e->_from_string();
        }

        for(std::list<CFace*>::iterator fiter = m_faces.begin();  fiter != m_faces.end() ; ++ fiter )
        {
                CFace *     f = *fiter;
                f->_from_string();
        }

        for( std::list<CFace*>::iterator fiter=m_faces.begin(); fiter != m_faces.end(); fiter ++ )
        {
                CFace * pF = *fiter;

                CHalfEdge * pH  = faceMostCcwHalfEdge( pF );
                do{
                        pH->_from_string();
                        pH = faceNextCcwHalfEdge( pH );
                }while( pH != faceMostCcwHalfEdge(pF ) );
        }

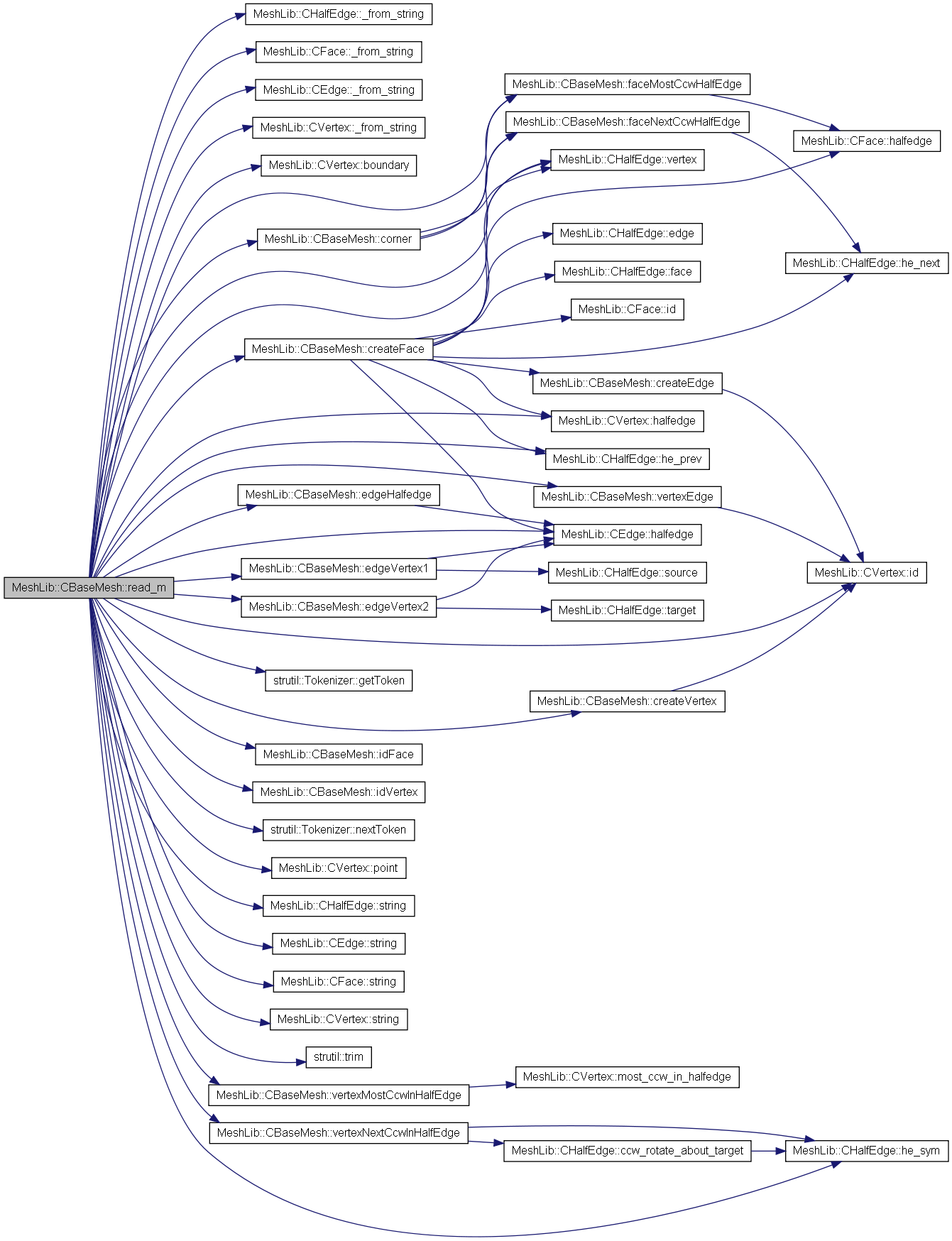

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
void MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::read_obj ( const char *  filename  )

Read an .obj file.

Parameters:
filename the input .obj file name

Read an .obj file.

Parameters:
filename the filename .obj file name

Definition at line 910 of file BaseMesh.h.

{

        std::fstream f(filename, std::fstream::in);
        if( f.fail() ) return;

        char cmd[1024];

        int  vid = 1;
        int  fid = 1;

        bool with_uv = false;
        bool with_normal = false;

        std::vector<CPoint2> uvs;
        std::vector<CPoint> normals;


        while ( f.getline( cmd, 1024) )
    {
                std::string line( cmd );
                line = strutil::trim( line );

                strutil::Tokenizer stokenizer( line, " \t\r\n" );

                stokenizer.nextToken();
                std::string token = stokenizer.getToken();

                if( token == "v" )
                {
                        CPoint p;
                        for( int i = 0; i < 3; i ++ )
                        {
                                stokenizer.nextToken();
                                token = stokenizer.getToken();
                                p[i] = strutil::parseString<float>(token);
                        }

                        CVertex * v = createVertex( vid);
                        v->point() = p;
                        vid ++;
                        continue;
                }


                if( token == "vt" )
                {
                        with_uv = true;
                        CPoint2 uv;
                        for( int i = 0; i < 2; i ++ )
                        {
                                stokenizer.nextToken();
                                token = stokenizer.getToken();
                                uv[i] = strutil::parseString<float>(token);
                        }
                        uvs.push_back( uv );
                        continue;
                }


                if ( token ==  "vn" )
                {
                        with_normal = true;

                        CPoint n;
                        for( int i = 0; i < 3; i ++ )
                        {
                                stokenizer.nextToken();
                                token = stokenizer.getToken();
                                n[i] = strutil::parseString<float>(token);
                        }
                        normals.push_back( n );
                        continue;
                }




                if ( token == "f" )
                {
                        CVertex* v[3];
                        for( int i = 0 ; i < 3; i ++ )
                        {
                                stokenizer.nextToken();
                                token = stokenizer.getToken();


                                strutil::Tokenizer tokenizer( token, " /\t\r\n" );

                                int ids[3];
                                int k = 0;
                                while( tokenizer.nextToken() )
                                {
                                        std::string token = tokenizer.getToken();
                                        ids[k] = strutil::parseString<int>(token);
                                        k ++;
                                }


                                v[i] = m_map_vert[ ids[0] ];
                                if( with_uv )
                                        v[i]->uv() = uvs[ ids[1]-1 ];
                                if( with_normal )
                                        v[i]->normal() = normals[ ids[2]-1 ];
                        }
                        createFace( v, fid++ );
                }
        }

        f.close();

        //Label boundary edges
        for(std::list<CEdge*>::iterator eiter= m_edges.begin() ; eiter != m_edges.end() ; ++ eiter )
        {
                CEdge *     edge = *eiter;
                CHalfEdge * he[2];

                he[0] = edge->halfedge(0);
                he[1] = edge->halfedge(1);

                assert( he[0] != NULL );


                if( he[1] != NULL )
                {
                        assert( he[0]->target() == he[1]->source() && he[0]->source() == he[1]->target() );

                        if( he[0]->target()->id() < he[0]->source()->id() )
                        {
                                edge->halfedge(0 ) = he[1];
                                edge->halfedge(1 ) = he[0];
                        }

                        assert( edgeVertex1(edge)->id() < edgeVertex2(edge)->id() );
                }
                else
                {
                        he[0]->vertex()->boundary() = true;
                        he[0]->he_prev()->vertex()->boundary()  = true;
                }

        }

        std::list<CVertex*> dangling_verts;
        //Label boundary edges
        for(std::list<CVertex*>::iterator viter = m_verts.begin();  viter != m_verts.end() ; ++ viter )
        {
                tVertex     v = *viter;
                if( v->halfedge() != NULL ) continue;
                dangling_verts.push_back( v );
        }

        for( std::list<CVertex*>::iterator  viter = dangling_verts.begin() ; viter != dangling_verts.end(); ++ viter )
        {
                tVertex v = *viter;
                m_verts.remove( v );
                delete v;
                v = NULL;
        }

        //Arrange the boundary half_edge of boundary vertices, to make its halfedge
        //to be the most ccw in half_edge

        for(std::list<CVertex*>::iterator viter = m_verts.begin();  viter != m_verts.end() ; ++ viter )
        {
                tVertex     v = *viter;
                if( !v->boundary() ) continue;

                CHalfEdge * he = v->halfedge();
                while( he->he_sym() != NULL )
                {
                        he = vertexNextCcwInHalfEdge( he );
                }

                v->halfedge() = he;
        }

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

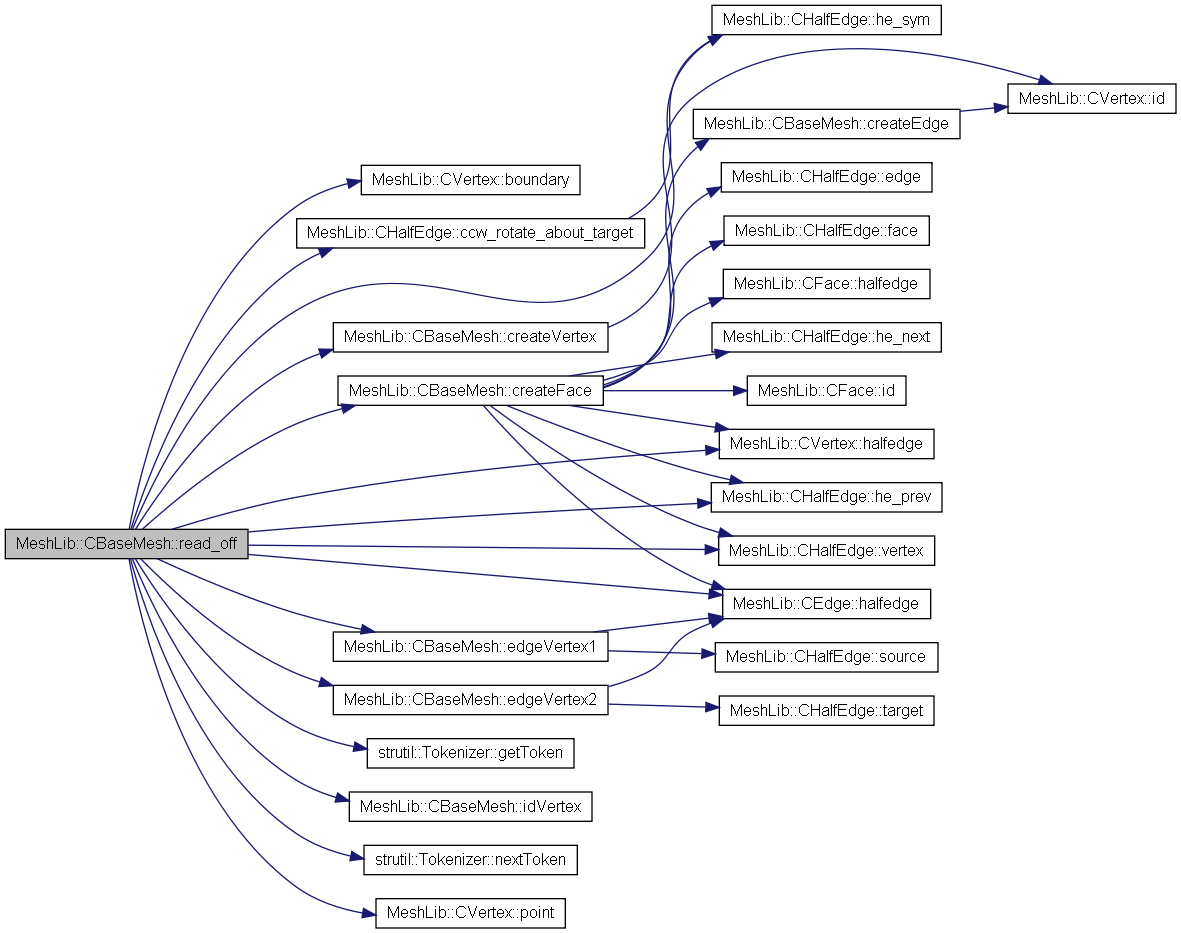

void MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::read_off ( const char *  input  )

Read an .off file

Parameters:
input the input .off filename

Definition at line 1801 of file BaseMesh.h.

{
        std::fstream is( input, std::fstream::in );

        if( is.fail() )
        {
                fprintf(stderr,"Error is opening file %s\n", input );
                return;
        }

        char buffer[MAX_LINE];

        //read in the first line "OFF"

        while( is.getline(buffer, MAX_LINE )  )
        {
                std::string line( buffer );

                strutil::Tokenizer stokenizer( line, " \r\n" );

                stokenizer.nextToken();
                std::string token = stokenizer.getToken();
                if( token == "OFF"  ) break;
        }

        int nVertices, nFaces, nEdges;

        //read in Vertex Number, Face Number, Edge Number

                is.getline(buffer, MAX_LINE );
                std::string line( buffer );

                strutil::Tokenizer stokenizer( line, " \r\n" );

                stokenizer.nextToken();
                std::string token = stokenizer.getToken();
                nVertices = strutil::parseString<int>( token );

                stokenizer.nextToken();
                token = stokenizer.getToken();
                nFaces = strutil::parseString<int>( token );

                stokenizer.nextToken();
                token = stokenizer.getToken();
                nEdges = strutil::parseString<int>( token );

                //printf("V %d F %d E %d\n" , nVertices, nFaces, nEdges);


        for( int id = 0; id < nVertices; id ++ )
        {
                is.getline(buffer, MAX_LINE );
                std::string line( buffer );

                strutil::Tokenizer stokenizer( line, " \r\n" );
                CPoint p;
                for( int j = 0; j < 3; j ++ )
                {
                        stokenizer.nextToken();
                        std::string token = stokenizer.getToken();
                        p[j] = strutil::parseString<float>( token );
                }

                        CVertex * v = createVertex( id + 1 );
                        v->point() = p;
        }


        for( int id = 0; id < nFaces; id ++ )
        {

                is.getline(buffer, MAX_LINE );
                std::string line( buffer );

                strutil::Tokenizer stokenizer( line, " \r\n" );
                stokenizer.nextToken();
                std::string token = stokenizer.getToken();

                int n = strutil::parseString<int>(token);
                assert( n == 3 );

                CVertex * v[3];
                for( int j = 0; j < 3; j ++ )
                {
                        stokenizer.nextToken();
                        std::string token = stokenizer.getToken();
                        int vid = strutil::parseString<int>( token );
                        v[j] = idVertex( vid + 1);
                }

                createFace( v, id + 1 );
        }

        is.close();

        //Label boundary edges
        for(std::list<CEdge*>::iterator eiter= m_edges.begin() ; eiter != m_edges.end() ; ++ eiter )
        {
                CEdge *     edge = *eiter;
                CHalfEdge * he[2];

                he[0] = edge->halfedge(0);
                he[1] = edge->halfedge(1);

                assert( he[0] != NULL );


                if( he[1] != NULL )
                {
                        assert( he[0]->target() == he[1]->source() && he[0]->source() == he[1]->target() );

                        if( he[0]->target()->id() < he[0]->source()->id() )
                        {
                                edge->halfedge(0 ) = he[1];
                                edge->halfedge(1 ) = he[0];
                        }

                        assert( edgeVertex1(edge)->id() < edgeVertex2(edge)->id() );
                }
                else
                {
                        he[0]->vertex()->boundary() = true;
                        he[0]->he_prev()->vertex()->boundary()  = true;
                }

        }

        std::list<CVertex*> dangling_verts;
        //Label boundary edges
        for(std::list<CVertex*>::iterator viter = m_verts.begin();  viter != m_verts.end() ; ++ viter )
        {
                tVertex     v = *viter;
                if( v->halfedge() != NULL ) continue;
                dangling_verts.push_back( v );
        }

        for( std::list<CVertex*>::iterator  viter = dangling_verts.begin() ; viter != dangling_verts.end(); ++ viter )
        {
                tVertex v = *viter;
                m_verts.remove( v );
                delete v;
                v = NULL;
        }

        //Arrange the boundary half_edge of boundary vertices, to make its halfedge
        //to be the most ccw in half_edge

        for(std::list<CVertex*>::iterator viter = m_verts.begin();  viter != m_verts.end() ; ++ viter )
        {
                tVertex     v = *viter;
                if( !v->boundary() ) continue;

                CHalfEdge * he = v->halfedge();
                while( he->he_sym() != NULL )
                {
                        he = he->ccw_rotate_about_target();
                }
                v->halfedge() = he;
        }


Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexEdge ( tVertex  v0,
tVertex  v1
)

Access an edge by its two end vertices

Parameters:
v0 one vertex of the edge
v1 the other vertex of the edge
Returns:
the edge connecting both v0 and v1, NULL if no such edge exists.

Definition at line 1237 of file BaseMesh.h.

{
        CEdgeKey key(v0->id(),v1->id());
        return m_map_edge[key];

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexHalfedge ( tVertex  v0,
tVertex  v1
)

Access a halfedge by its two end vertices

Parameters:
v0 one vertex of the halfedge
v1 the other vertex of the halfedge
Returns:
the halfedge connecting both v0 and v1, NULL if no such edge exists.

Definition at line 1252 of file BaseMesh.h.

{
        CEdge * e = vertexEdge( v0, v1 );
        assert( e != NULL );
        CHalfEdge * he = (CHalfEdge*) e->halfedge(0);
        if( he->vertex() == v1 && he->he_prev()->vertex() == v0 ) return he;
        he = (CHalfEdge*) e->halfedge(1);
        assert( he->vertex() == v1 && he->he_prev()->vertex() == v0 );
        return he;

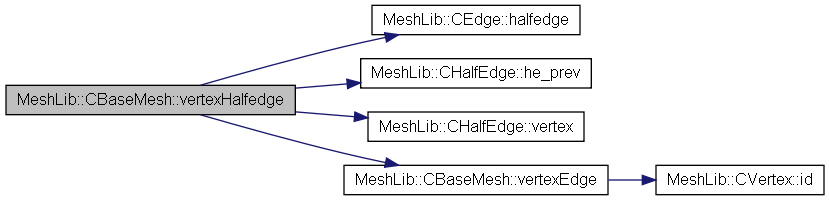

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexHalfedge ( tVertex  v  )

The halfedge targeting at a vertex.

Parameters:
v the input vertex.
Returns:
the halfedge targeting at v, which is the most ccw in halfedge of v.

Definition at line 1270 of file BaseMesh.h.

{
        return (CHalfEdge*) v->halfedge();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
int MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexId ( tVertex  v  )

The vertex id

Parameters:
v the input vertex
Returns:
the vertex id.

Definition at line 1169 of file BaseMesh.h.

{
        return v->id();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexMostCcwInHalfEdge ( tVertex  v  )

The most Ccw In HalfEdge of a vertex

Parameters:
v the input vertex.
Returns:
the most Ccw In HalfEdge of v.

The most Ccw In HalfEdge of a vertex

Parameters:
v the input vertex.
Returns:
the most Clw In HalfEdge of v.

Definition at line 751 of file BaseMesh.h.

{
        return (CHalfEdge*)v->most_ccw_in_halfedge();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexMostCcwOutHalfEdge ( tVertex  v  )

The most Ccw Out HalfEdge of a vertex

Parameters:
v the input vertex.
Returns:
the most Ccw Out HalfEdge of v.

The next Ccw Out HalfEdge

Parameters:
v the input vertex.
Returns:
the next Ccw Out HalfEdge, sharing the same source of he.

Definition at line 690 of file BaseMesh.h.

{
        return (CHalfEdge*)v->most_ccw_out_halfedge();

Here is the call graph for this function:

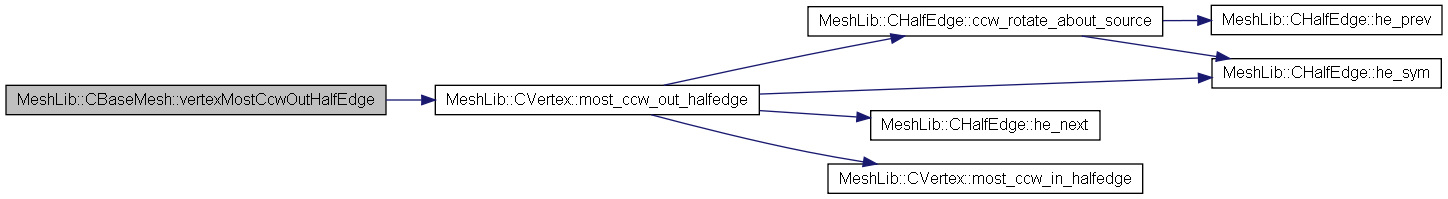

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexMostClwInHalfEdge ( tVertex  v  )

The most Clw In HalfEdge of a vertex

Parameters:
v the input vertex.
Returns:
the most Clw In HalfEdge of v.

Definition at line 740 of file BaseMesh.h.

{
        return (CHalfEdge*)v->most_clw_in_halfedge();

Here is the call graph for this function:

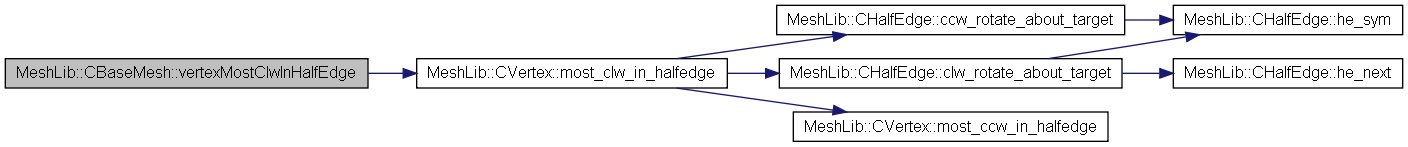

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexMostClwOutHalfEdge ( tVertex  v  )

The most Clw Out HalfEdge of a vertex

Parameters:
v the input vertex.
Returns:
the most Clw Out HalfEdge of v.

Definition at line 680 of file BaseMesh.h.

{
        return (CHalfEdge*)v->most_clw_out_halfedge();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexNextCcwInHalfEdge ( tHalfEdge  he  )

The next Ccw In HalfEdge

Parameters:
he the input halfedge .
Returns:
the next Ccw In HalfEdge, sharing the same target of he.

Definition at line 763 of file BaseMesh.h.

{
        assert( he->he_sym() != NULL );
        return (CHalfEdge*)he->ccw_rotate_about_target();

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexNextCcwOutHalfEdge ( tHalfEdge  he  )

The next Ccw Out HalfEdge

Parameters:
he the input halfedge .
Returns:
the next Ccw Out HalfEdge, sharing the same source of he.

Definition at line 718 of file BaseMesh.h.

{
        return (CHalfEdge*) he->ccw_rotate_about_source();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexNextClwInHalfEdge ( tHalfEdge  he  )

The next Clw In HalfEdge

Parameters:
he the input halfedge .
Returns:
the next Clw In HalfEdge, sharing the same target of he.

Definition at line 774 of file BaseMesh.h.

{
        return (CHalfEdge*)he->clw_rotate_about_target();

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
CHalfEdge * MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertexNextClwOutHalfEdge ( tHalfEdge  he  )

The next Clw Out HalfEdge

Parameters:
he the input halfedge .
Returns:
the next Clw Out HalfEdge, sharing the same source of he.

Definition at line 728 of file BaseMesh.h.

{
        assert( he->he_sym() != NULL );
        return (CHalfEdge*)he->clw_rotate_about_source();

Here is the call graph for this function:

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::list<tVertex>& MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::vertices (  )  [inline]

List of the vertices of the mesh.

Definition at line 369 of file BaseMesh.h.

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
void MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::write_m ( const char *  output  )

Write an .m file.

Parameters:
output the output .m file name

Definition at line 1530 of file BaseMesh.h.

{
        //write traits to string
        for( std::list<CVertex*>::iterator viter=m_verts.begin(); viter != m_verts.end(); viter ++ )
        {
                CVertex * pV = *viter;
                pV->_to_string();
        }

        for( std::list<CEdge*>::iterator eiter=m_edges.begin(); eiter != m_edges.end(); eiter ++ )
        {
                CEdge * pE = *eiter;
                pE->_to_string();
        }

        for( std::list<CFace*>::iterator fiter=m_faces.begin(); fiter != m_faces.end(); fiter ++ )
        {
                CFace * pF = *fiter;
                pF->_to_string();
        }

        for( std::list<CFace*>::iterator fiter=m_faces.begin(); fiter != m_faces.end(); fiter ++ )
        {
                CFace * pF = *fiter;
                CHalfEdge * pH  = faceMostCcwHalfEdge( pF );
                do{
                        pH->_to_string();
                        pH = faceNextCcwHalfEdge( pH );
                }while( pH != faceMostCcwHalfEdge(pF ) );
        }


        std::fstream _os( output, std::fstream::out );
        if( _os.fail() )
        {
                fprintf(stderr,"Error is opening file %s\n", output );
                return;
        }


        //remove vertices
  for( std::list<CVertex*>::iterator viter = m_verts.begin(); viter != m_verts.end(); viter ++)
  {
                tVertex v = *viter;

                _os << "Vertex " << v->id();

                for( int i = 0; i < 3; i ++ )
                {
                        _os << " " << v->point()[i];
                }
                if( v->string().size() > 0 )
                {
                        _os << " " <<"{"<< v->string() << "}";
                }
                _os << std::endl;
        }

  for( std::list<CFace*>::iterator fiter = m_faces.begin(); fiter != m_faces.end(); fiter ++ )
        {
                tFace f = *fiter;

                _os << "Face " << f->id();
                tHalfEdge he = faceHalfedge( f );
                do{
                        _os << " " <<  he->target()->id();
                        he = halfedgeNext( he );
                }while( he != f->halfedge() );

                if( f->string().size() > 0 )
                {
                        _os << "{"<< f->string() << "}";
                }
                _os << std::endl;
        }

  for( std::list<CEdge*>::iterator eiter = m_edges.begin(); eiter != m_edges.end(); eiter ++ )
        {
                tEdge e = *eiter;
                if( e->string().size() > 0 )
                {
                        _os << "Edge "<<  edgeVertex1(e)->id() <<" " << edgeVertex2(e)->id() << " ";
                        _os << "{" << e->string() << "}" << std::endl;
                }
        }

  for( std::list<CFace*>::iterator fiter = m_faces.begin(); fiter != m_faces.end(); fiter ++  )
        {
                tFace f = *fiter;

                tHalfEdge he = faceHalfedge( f );

    do{
                        if( he->string().size() > 0 )
                          {
                                  _os << "Corner "<< he->vertex()->id() << " " << f->id() << " ";
                                  _os << "{" << he->string() << "}" << std::endl;
                          }
                          he = halfedgeNext( he );
                }while( he != f->halfedge() );

  }

        _os.close();

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >
void MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::write_obj ( const char *  output  )

Write an .obj file.

Parameters:
output the output .obj file name

Definition at line 1643 of file BaseMesh.h.

{
        std::fstream _os( output, std::fstream::out );
        if( _os.fail() )
        {
                fprintf(stderr,"Error is opening file %s\n", output );
                return;
        }

        int vid = 1;
        for( std::list<CVertex*>::iterator viter = m_verts.begin(); viter != m_verts.end(); viter ++)
        {
                tVertex v = *viter;
                v->id() = vid ++;
        }

        for( std::list<CVertex*>::iterator viter = m_verts.begin(); viter != m_verts.end(); viter ++)
        {
                tVertex v = *viter;

                _os << "v";

                for( int i = 0; i < 3; i ++ )
                {
                        _os << " " << v->point()[i];
                }
                _os << std::endl;
        }

        for( std::list<CVertex*>::iterator viter = m_verts.begin(); viter != m_verts.end(); viter ++)
        {
                tVertex v = *viter;

                _os << "vt";

                for( int i = 0; i < 2; i ++ )
                {
                        _os << " " << v->uv()[i];
                }
                _os << std::endl;
        }

        for( std::list<CVertex*>::iterator viter = m_verts.begin(); viter != m_verts.end(); viter ++)
        {
                tVertex v = *viter;

                _os << "vn";

                for( int i = 0; i < 3; i ++ )
                {
                        _os << " " << v->normal()[i];
                }
                _os << std::endl;
        }


  for( std::list<CFace*>::iterator fiter = m_faces.begin(); fiter != m_faces.end(); fiter ++ )
        {
                tFace f = *fiter;

                _os << "f";

                tHalfEdge he = f->halfedge();

                do{
                        int vid = he->target()->id();
                        _os << " " <<  vid << "/" << vid << "/" << vid;
                        he = he->he_next();
                }while( he != f->halfedge() );
                _os << std::endl;
        }

        _os.close();

Here is the call graph for this function:


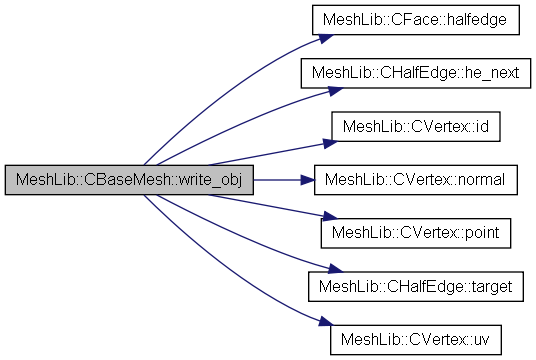

Member Data Documentation

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::list<tEdge> MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_edges [protected]

list of edges

Definition at line 369 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::list<tFace> MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_faces [protected]

list of faces

Definition at line 381 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::map<CEdgeKey, tEdge> MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_map_edge [protected]

map between edge and its edgekey

Definition at line 390 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::map<int, tFace> MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_map_face [protected]

map between face and its id

Definition at line 388 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::map<int, tVertex> MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_map_vert [protected]

map between vetex and its id

Definition at line 386 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
std::list<tVertex> MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_verts [protected]

list of vertices

Definition at line 379 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
bool MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_with_normal

whether the mesh is with normal

Definition at line 420 of file BaseMesh.h.

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
bool MeshLib::CBaseMesh< CVertex, CEdge, CFace, CHalfEdge >::m_with_texture

whether the vertex is with texture coordinates

Definition at line 418 of file BaseMesh.h.


The documentation for this class was generated from the following file:
 All Classes Namespaces Files Functions Variables Typedefs Enumerator Defines
