MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge > Class Template Reference

VertexVertexIterator, transverse all the neighboring vertices of a vertex ccwly. More...

#include <iterators.h>

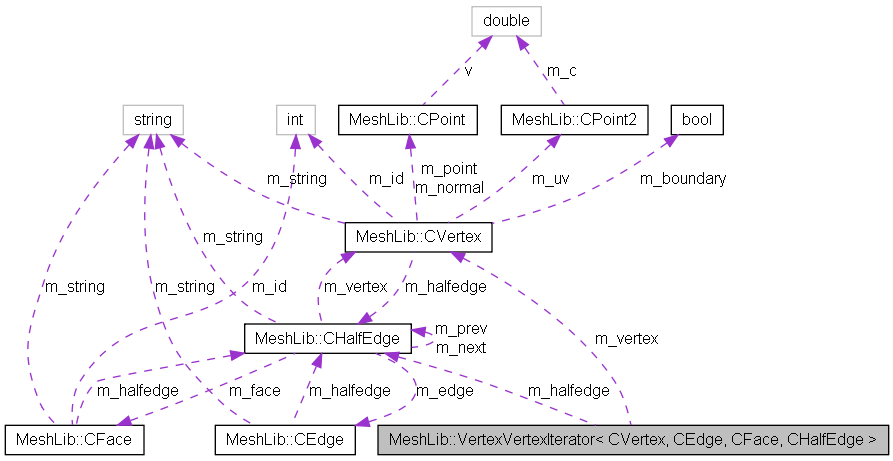

Collaboration diagram for MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >:

List of all members.

Public Member Functions
	VertexVertexIterator (CVertex *v)
	~VertexVertexIterator ()
void	operator++ ()
void	operator++ (int)
CVertex *	value ()
CVertex *	operator* ()
bool	end ()
void	reset ()
Private Attributes
CVertex *	m_vertex
CHalfEdge *	m_halfedge

---

Detailed Description

template<typename CVertex, typename CEdge, typename CFace, typename CHalfEdge>
class MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >

VertexVertexIterator, transverse all the neighboring vertices of a vertex ccwly.

Definition at line 165 of file iterators.h.

---

Constructor & Destructor Documentation

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::VertexVertexIterator

(

CVertex *

v

)

[inline]

VertexVertexIterator constructor

Parameters:

v

the current vertex

Definition at line 172 of file iterators.h.

        {
                m_vertex = v;
                m_halfedge = (CHalfEdge*)m_vertex->most_clw_out_halfedge();
        };

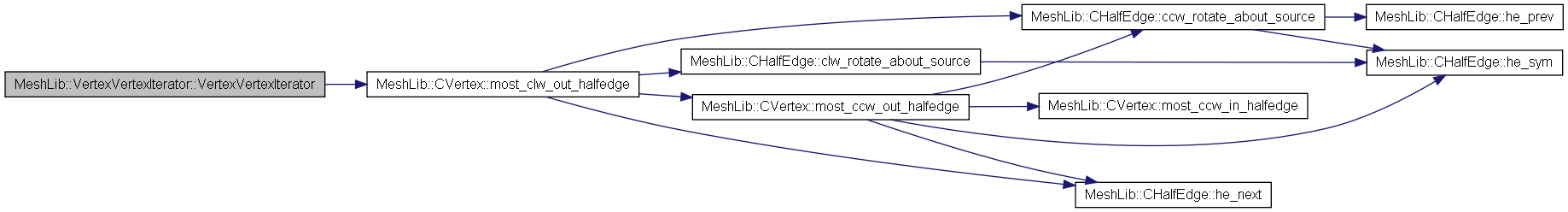

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::~VertexVertexIterator

(

)

[inline]

VertexVertexIterator destructor

Definition at line 181 of file iterators.h.

{};

---

Member Function Documentation

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

bool MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::end

(

)

[inline]

Indicate whether all the neighboring vertices have been accessed.

Definition at line 302 of file iterators.h.

{ return m_halfedge == NULL; };

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CVertex* MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::operator*

(

)

[inline]

The neighboring vertex, pointed by the current iterator

Definition at line 297 of file iterators.h.

{ return value(); };

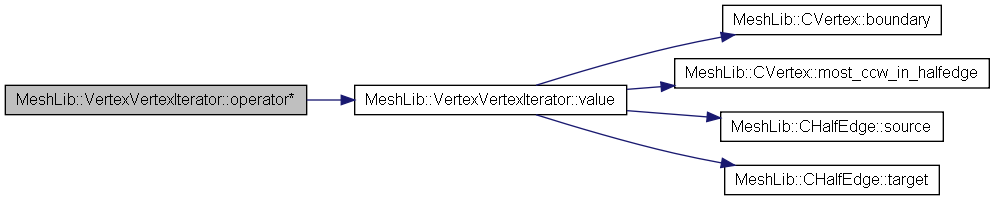

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

void MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::operator++

(

)

[inline]

VertexVertexIterator prefix operator ++, goes to the next neighboring vertex CCWly

Definition at line 187 of file iterators.h.

        {
                assert( m_halfedge != NULL );

                if( !m_vertex->boundary() )
                {
                        if( m_halfedge != m_vertex->most_ccw_out_halfedge() )
                        {
                                m_halfedge = (CHalfEdge*)m_halfedge->ccw_rotate_about_source();
                        }
                        else
                        {
                                m_halfedge = NULL;
                        }
                        return;
                }

                if( m_vertex->boundary() )
                {
                        if( m_halfedge == (CHalfEdge*)m_vertex->most_ccw_in_halfedge() )
                        {
                                m_halfedge = NULL;
                                return;
                        }

                        CHalfEdge * he = (CHalfEdge*)m_halfedge->ccw_rotate_about_source();

                        if( he == NULL )
                        {
                                m_halfedge = (CHalfEdge*)m_vertex->most_ccw_in_halfedge();
                        }
                        else
                        {
                                m_halfedge = he;
                        }
                }

                return;
        };

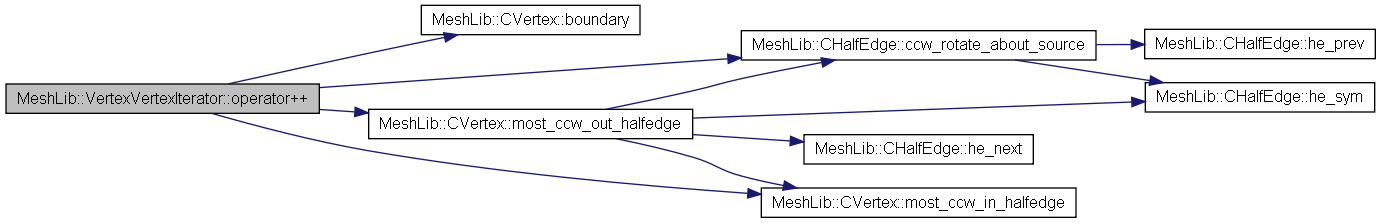

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

void MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::operator++

(

int

)

[inline]

VertexVertexIterator postfix operator ++, goes to the next neighboring vertex CCWly

Definition at line 231 of file iterators.h.

        {
                assert( m_halfedge != NULL );

                if( !m_vertex->boundary() )
                {
                        if( m_halfedge != (CHalfEdge*)m_vertex->most_ccw_out_halfedge() )
                        {
                                m_halfedge = (CHalfEdge*)m_halfedge->ccw_rotate_about_source();
                        }
                        else
                        {
                                m_halfedge = NULL;
                        }
                        return;
                }

                if( m_vertex->boundary() )
                {
                        if( m_halfedge == (CHalfEdge*)m_vertex->most_ccw_in_halfedge() )
                        {
                                m_halfedge = NULL;
                                return;
                        }

                        CHalfEdge * he = (CHalfEdge*)m_halfedge->ccw_rotate_about_source();

                        if( he == NULL )
                        {
                                m_halfedge = (CHalfEdge*)m_vertex->most_ccw_in_halfedge();
                        }
                        else
                        {
                                m_halfedge = he;
                        }
                }

                return;
        };

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

void MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::reset

(

)

[inline]

Reset the iterator.

Definition at line 307 of file iterators.h.

{ m_halfedge = (CHalfEdge*)m_vertex->most_clw_out_halfedge(); };

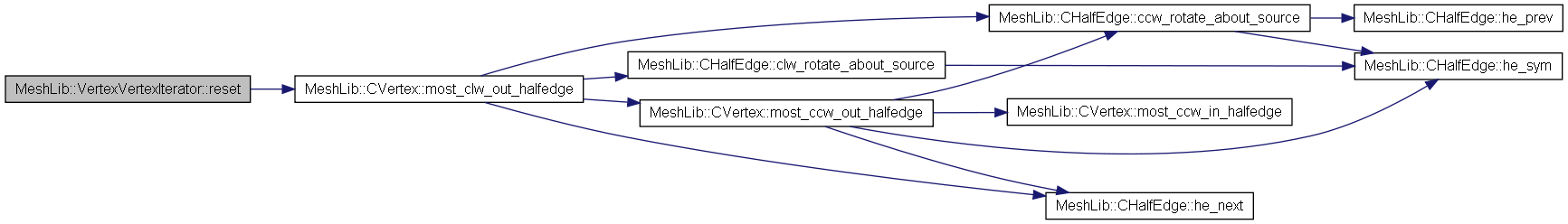

Here is the call graph for this function:

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CVertex* MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::value

(

)

[inline]

The neighboring vertex, pointed by the current iterator

Definition at line 275 of file iterators.h.

         {
                 if( !m_vertex->boundary() )
                 {
                         return (CVertex*)m_halfedge->target();
                 }

                 if( m_halfedge != (CHalfEdge*)m_vertex->most_ccw_in_halfedge() )
                 {
                         return (CVertex*)m_halfedge->target();
                 }

                 if( m_halfedge == (CHalfEdge*)m_vertex->most_ccw_in_halfedge() )
                 {
                         return (CVertex*)m_halfedge->source();
                 }
                 return NULL;
         };

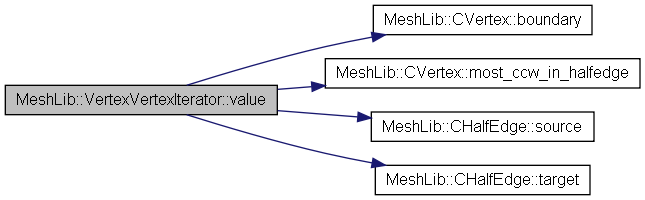

Here is the call graph for this function:

Here is the caller graph for this function:

---

Member Data Documentation

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CHalfEdge* MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::m_halfedge [private]

Current halfedge.

Definition at line 317 of file iterators.h.

template<typename CVertex , typename CEdge , typename CFace , typename CHalfEdge >

CVertex* MeshLib::VertexVertexIterator< CVertex, CEdge, CFace, CHalfEdge >::m_vertex [private]

Current vertex

Definition at line 307 of file iterators.h.

---

The documentation for this class was generated from the following file:

• core/Mesh/iterators.h
